Double Wall Chemical Storage Tanks

A small sample of our Double Wall Chemical Storage Tanks is shown below.

300 Gallon Double Wall Chemical Tank   2500 Gallon Double Wall Chemical Tank   4200 Gallon Double Wall Chemical Tank 6000 gallon double wall chemical storage tank

300 Gallon Double Wall Chemical Tank

 2500 Gallon Double Wall Chemical Tank

 4200 Gallon Double Wall Chemical Tank

6000 Gallon Double Wall Chemical Tank

Our double wall chemical storage tanks provide excellent protection against hazardous chemical spills.  Double wall plastic tanks are completely sealed and prevent rain, dirt and debris from entering the containment tank. Our double wall chemical storage tanks have many options available including heat tracing and insulation.  Heat tracing and insulation can keep the tank contents at any desired maintenance temperature.  Our large double wall tanks have molded-in lifting lugs for easy unloading and placement of the tank in your facility.  Our chemical storage tanks are designed for installation of common fittings including welded flanges and FIPT couplings.  Click here to check Chemical Compatibility.
All of our double wall double wall chemical storage tanks meet or exceed the wall thickness requirements of the ASTM D-1998 standards.  This is true of the primary inner tank as well as the secondary containment tank.  We make our Double Wall Chemical Storage Tanks from several plastic resins including HDPE, Polypropylene and PVDF.  HDPE is the most commonly used double wall tank but when higher continuous use temperatures higher than 130 degrees fahrenheit are required or special chemical compatibility is needed, the other resins come into play.
...

Tank Options Available on our Double Wall Chemical Storage Tanks:
Fiberglass Ladders: Standard or OSHA Caged
Tie Down or Bolt Down Restraints: 120 MPH wind load or Seismic Zone 4
Temperature Control: Heat Tracing Panels with Polyurethane Foam Insulation
Level Indicators: Ultrasonic Level Indicators or Mechanical Reverse Level Indicators
Top Fill and Top Discharge Lines: Equipped with Ball Valves and Check Valves
Leak Detection Alarms: Alerts you if liquid is in the containment tank
Manway Openings: Bolted, Hinged or Standard Threaded
Lifting Lugs Molding into larger tanks and an available option on others.
                 PLUS - Custom placement of the fittings you specify.


Listed below are our Double Wall Chemical Storage Tanks. We have Polyethylene Double Wall Storage Tanks, Polypropylene Double Wall Storage Tanks and Kynar PVDF Double Wall Chemical Storage Tanks.
HDPE TANKS
This HDPE complies with FDA standards 21 CFR 177.1520 (1) 3.1 and 3.2.         The maximum continuous use temperature is 130 F.
1.5 specific gravity TANKS
1,500 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$3457.00.
This tank ships from TEXAS 87" diameter x 116" tall 1.5 specific gravity
DOUBLE WALLVTNDC01500-87-1.5

1,550 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$3789.00.
This tank ships from TEXAS 95" diameter x 67" tall 1.5 specific gravity
DOUBLE WALLVTNDC01550-95-1.5

2,300 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$3300.00.
This tank ships from TEXAS 95" diameter x 90" tall 1.5 specific gravity
DOUBLE WALLVTBDC02300-95-1.5

2,500 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$4099.00.
This tank ships from TEXAS 102" diameter x 100" tall 1.5 specific gravity
DOUBLE WALLVTBDC02500-102-1.5

3,000 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$5350.00.
This tank ships from TEXAS 102" diameter x 131" tall 1.5 specific gravity
DOUBLE WALLVTBDC03000-102-1.5

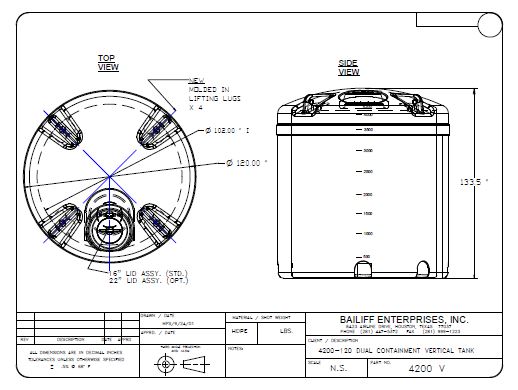

4,200 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$8210.00.
This tank ships from TEXAS 120" diameter x 131" tall 1.5 specific gravity
DOUBLE WALLVTBDC04200-120-1.5

5,000 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$8999.00.
This tank ships from TEXAS 120" diameter x 152" tall 1.5 specific gravity
DOUBLE WALLVTBDC05000-120-1.5

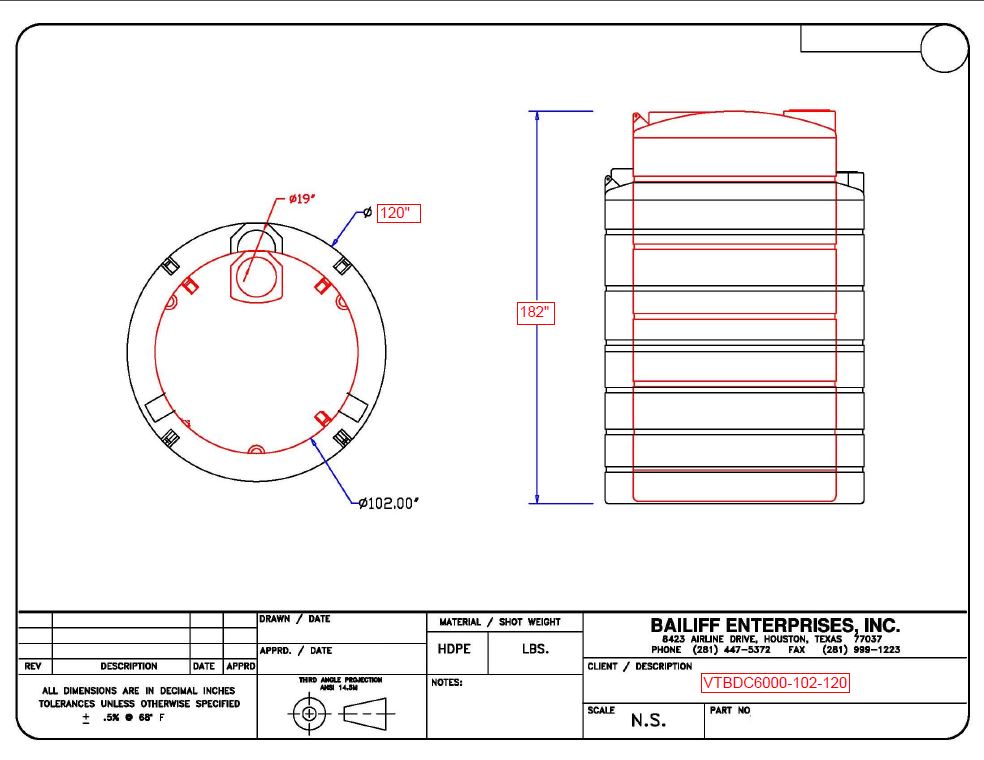

6,000 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$10199.00.
This tank ships from TEXAS 120" diameter x 182" tall 1.5 specific gravity
DOUBLE WALLVTBDC06000-120-1.5

6,500 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$16668.00.
This tank ships from TEXAS 120" diameter x 196" tall 1.5 specific gravity
DOUBLE WALLVTBDC06500-120-1.5

6,500 GALLON DOUBLE WALL TANK 1.5SG 142 DIAMETER VERTICAL HDPE$14800.00.
This tank ships from TEXAS 142" diameter x 150" tall 1.5 specific gravity
DOUBLE WALLVTBDC06500-142-1.5

8,400 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$16114.00.
This tank ships from TEXAS 141" diameter x 197" tall 1.5 specific gravity
DOUBLE WALLVTBDC08400-141-1.5

10,000 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$21999.00.
This tank ships from TEXAS 142" diameter x 202" tall 1.5 specific gravity
DOUBLE WALLVTBDC10500-142-1.5

12,000 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$30374.00.
This tank ships from TEXAS 165" diameter x 193" tall 1.5 specific gravity
DOUBLE WALLVTBDC12000-165-1.5

13,000 GALLON DOUBLE WALL TANK 1.5SG VERTICAL HDPE$32370.00.
This tank ships from TEXAS 165" diameter x 198" tall 1.5 specific gravity
DOUBLE WALLVTBDC13000-165-1.5

1.9 specific gravity TANKS
75 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$840.00.
This tank ships from TEXAS 32" diameter x 50" tall 1.9 specific gravity
DOUBLE WALLVTBDC00075-32-1.9

130 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$1073.00.
This tank ships from TEXAS 35" diameter x 45" tall 1.9 specific gravity
DOUBLE WALLVTBDC00130-35-1.9

160 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$1019.00.
This tank ships from TEXAS 31" diameter x 69" tall 1.9 specific gravity
DOUBLE WALLVTBDC00160-31-1.9

200 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$1140.00.
This tank ships from TEXAS 35" diameter x 78" tall 1.9 specific gravity
DOUBLE WALLVTBDC00200-35-1.9

250 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$1203.00.
This tank ships from TEXAS 35" diameter x 86" tall 1.9 specific gravity
DOUBLE WALLVTBDC00250-35-1.9

265 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$1205.00.
This tank ships from TEXAS 35" diameter x 91" tall 1.9 specific gravity
DOUBLE WALLVTBDC00265-35-1.9

300 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$1331.00.
This tank ships from TEXAS 48" diameter x 79" tall 1.9 specific gravity
DOUBLE WALLVTBDC00300-48-1.9

INSULATED 300 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$2371.00.
This tank ships from TEXAS 52" diameter x 81" tall 1.9 specific gravity
DOUBLE WALLIVTBDC00300-52-1.9

550 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$1325.00.
This tank ships from TEXAS 48" diameter x 98" tall 1.9 specific gravity
DOUBLE WALLVTBDC00550-48-1.9

INSULATED 550 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$2857.00.
This tank ships from TEXAS 52" diameter x 100" tall 1.9 specific gravity
DOUBLE WALLIVTBDC00550-52-1.9

700 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$1525.00.
This tank ships from TEXAS 60" diameter x 98" tall 1.9 specific gravity
DOUBLE WALLVTBDC00700-60-1.9-W

INSULATED 700 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$3371.00.
This tank ships from TEXAS 64" diameter x 100" tall 1.9 specific gravity
DOUBLE WALLIVTBDC00700-64-1.9

1,200 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$2838.00.
This tank ships from TEXAS 87" diameter x 96" tall 1.9 specific gravity
DOUBLE WALLVTBDC01200-87-1.9

INSULATED 1,200 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$5075.00.
This tank ships from TEXAS 91" diameter x 98" tall 1.9 specific gravity
DOUBLE WALLIVTBDC01200-87-1.9

1,500 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$3782.00.
This tank ships from TEXAS 87" diameter x 116" tall 1.9 specific gravity
DOUBLE WALLVTNDC01500-87-1.9

1,550 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$3710.00.
This tank ships from TEXAS 95" diameter x 67" tall 1.9 specific gravity
DOUBLE WALLVTNDC01550-95-1.9

2,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$6349.00.
This tank ships from TEXAS 102" diameter x 93" tall 1.9 specific gravity
DOUBLE WALLVTBDC02000-102-1.9

INSULATED 2,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$8961.00.
This tank ships from TEXAS 106" diameter x 95" tall 1.9 specific gravity
DOUBLE WALLIVTBDC02000-106-1.9

2,300 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$3500.00.
This tank ships from TEXAS 95" diameter x 90" tall 1.9 specific gravity
DOUBLE WALLVTBDC02300-95-1.9

2,500 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$4499.00.
This tank ships from TEXAS 102" diameter x 100" tall 1.9 specific gravity
DOUBLE WALLVTBDC02500-102-1.9

3,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$6990.00.
This tank ships from TEXAS 102" diameter x 131" tall 1.9 specific gravity
DOUBLE WALLVTBDC03000-102-1.9

INSULATED 3,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$10511.00.
This tank ships from TEXAS 106" diameter x 133" tall 1.9 specific gravity
DOUBLE WALLIVTBDC03000-102-1.9

4,200 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$9849.00.
This tank ships from TEXAS 120" diameter x 131" tall 1.9 specific gravity
DOUBLE WALLVTBDC04200-120-1.9

INSULATED 4,200 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$14068.00.
This tank ships from TEXAS 124" diameter x 133" tall 1.9 specific gravity
DOUBLE WALLIVTBDC04200-124-1.9

5,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$9999.00.
This tank ships from TEXAS 120" diameter x 152" tall 1.9 specific gravity
DOUBLE WALLVTBDC05000-120-1.9

INSULATED 5,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$15544.00.
This tank ships from TEXAS 124" diameter x 154" tall 1.9 specific gravity
DOUBLE WALLIVTBDC05000-124-1.9

6,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$11455.00.
This tank ships from TEXAS 120" diameter x 182" tall 1.9 specific gravity
DOUBLE WALLVTBDC06000-120-1.9

6,500 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$15373.00.
This tank ships from TEXAS 120" diameter x 196" tall 1.9 specific gravity
DOUBLE WALLVTBDC06500-120-1.9

6,500 GALLON DOUBLE WALL TANK 1.9SG 142 DIAMETER VERTICAL HDPE$15950.00.
This tank ships from TEXAS 142" diameter x 150" tall 1.9 specific gravity
DOUBLE WALLVTBDC06500-142-1.9

INSULATED 6,500 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$24561.00.
This tank ships from TEXAS 124" diameter x 198" tall 1.9 specific gravity
DOUBLE WALLIVTBDC06500-124-1.9

8,400 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$17949.00.
This tank ships from TEXAS 141" diameter x 197" tall 1.9 specific gravity
DOUBLE WALLVTBDC08400-141-1.9

10,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$23990.00.
This tank ships from TEXAS 142" diameter x 202" tall 1.9 specific gravity
DOUBLE WALLVTBDC10500-142-1.9

INSULATED 10,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$30496.00.
This tank ships from TEXAS 146" diameter x 204" tall 1.9 specific gravity
DOUBLE WALLIVTBDC10500-146-1.9

12,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$35081.00.
This tank ships from TEXAS 165" diameter x 193" tall 1.9 specific gravity
DOUBLE WALLVTBDC12000-165-1.9

13,000 GALLON DOUBLE WALL TANK 1.9SG VERTICAL HDPE$37145.00.
This tank ships from TEXAS 165" diameter x 198" tall 1.9 specific gravity
DOUBLE WALLVTBDC13000-165-1.9

55 GALLON DOUBLE WALL OPEN TOP TANK 1.9SG OPEN TOP HDPE$698.00.
This tank ships from TEXAS 28" diameter x 41" tall 1.9 specific gravity
DOUBLE WALLDWOTB055-28

100 GALLON DOUBLE WALL OPEN TOP TANK 1.9SG OPEN TOP HDPE$760.00.
This tank ships from TEXAS 32" diameter x 45" tall 1.9 specific gravity
DOUBLE WALLDWOTB100-32

150 GALLON DOUBLE WALL OPEN TOP TANK 1.9SG OPEN TOP HDPE$805.00.
This tank ships from TEXAS 36" diameter x 51" tall 1.9 specific gravity
DOUBLE WALLDWOTB150-36

2.2 specific gravity TANKS
2,300 GALLON DOUBLE WALL TANK 2.2SG VERTICAL HDPE$3600.00.
This tank ships from TEXAS 95" diameter x 90" tall 2.2 specific gravity
DOUBLE WALLVTBDC02300-95-2.2

4,200 GALLON DOUBLE WALL TANK 2.2SG VERTICAL HDPE$10670.00.
This tank ships from TEXAS 120" diameter x 131" tall 2.2 specific gravity
DOUBLE WALLVTBDC04200-120-2.2

5,000 GALLON DOUBLE WALL TANK 2.2SG VERTICAL HDPE$13052.00.
This tank ships from TEXAS 120" diameter x 152" tall 2.2 specific gravity
DOUBLE WALLVTBDC05000-120-2.2

6,000 GALLON DOUBLE WALL TANK 2.2SG VERTICAL HDPE$14113.00.
This tank ships from TEXAS 120" diameter x 182" tall 2.2 specific gravity
DOUBLE WALLVTBDC06000-120-2.2

PVDF TANKS
PVDF has a continuous use temperature of 300 degrees F. for some applications.         It is a translucent, milky white color unless otherwise noted.
1.9 specific gravity TANKS
75 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$3804.00.
This tank ships from TEXAS 31" diameter x 50" tall 1.9 specific gravity
DOUBLE WALLVTBDC00075-31-1.9-PVDF

120 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$5324.00.
This tank ships from TEXAS 31" diameter x 54" tall 1.9 specific gravity
DOUBLE WALLVTBDC00120-31-1.9PVDF

200 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$7655.00.
This tank ships from TEXAS 35" diameter x 78" tall 1.9 specific gravity
DOUBLE WALLVTBDC00200-35-1.9PVDDF

250 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$8089.00.
This tank ships from TEXAS 35" diameter x 86" tall 1.9 specific gravity
DOUBLE WALLVTBDC00250-35-1.9PVDF

265 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$8105.00.
This tank ships from TEXAS 35" diameter x 91" tall 1.9 specific gravity
DOUBLE WALLVTBDC00265-35-1.9PVDF

300 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$10012.00.
This tank ships from TEXAS 48" diameter x 55" tall 1.9 specific gravity
DOUBLE WALLVTBDC00300-48-1.9-PVDF

550 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$17774.00.
This tank ships from TEXAS 48" diameter x 98" tall 1.9 specific gravity
DOUBLE WALLVTBDC00550-48-1.9-PVDF

700 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$18424.00.
This tank ships from TEXAS 60" diameter x 98" tall 1.9 specific gravity
DOUBLE WALLVTBDC00700-87-1.9PVDF

1200 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$26942.00.
This tank ships from TEXAS 87" diameter x 96" tall 1.9 specific gravity
DOUBLE WALLVTBDC01200-87-1.9PVDF

1550 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$39735.00.
This tank ships from TEXAS 87" diameter x 124" tall 1.9 specific gravity
DOUBLE WALLVTBDC01550-87-1.9PVDF

2,300 GALLON DOUBLE WALL Kynar Tank 1.9SG VERTICAL PVDF$47325.00.
This tank ships from TEXAS 95" diameter x 89" tall 1.9 specific gravity
DOUBLE WALLVTBDC02300-95-1.9PVDF


Our tanks are made in America.Our tanks are made in the USA. Send us an email.   Sales - 713-203-4650 We accept AMEX, Visa and MasterCardWe accept AMEX, Visa and MasterCard.We accept AMEX, Visa and MasterCard.
